Power 23" monitor during load shedding.
Backup Power for more than 2 hours
Device List:
| Function | Device | Model | Volt | Rating | Wh |

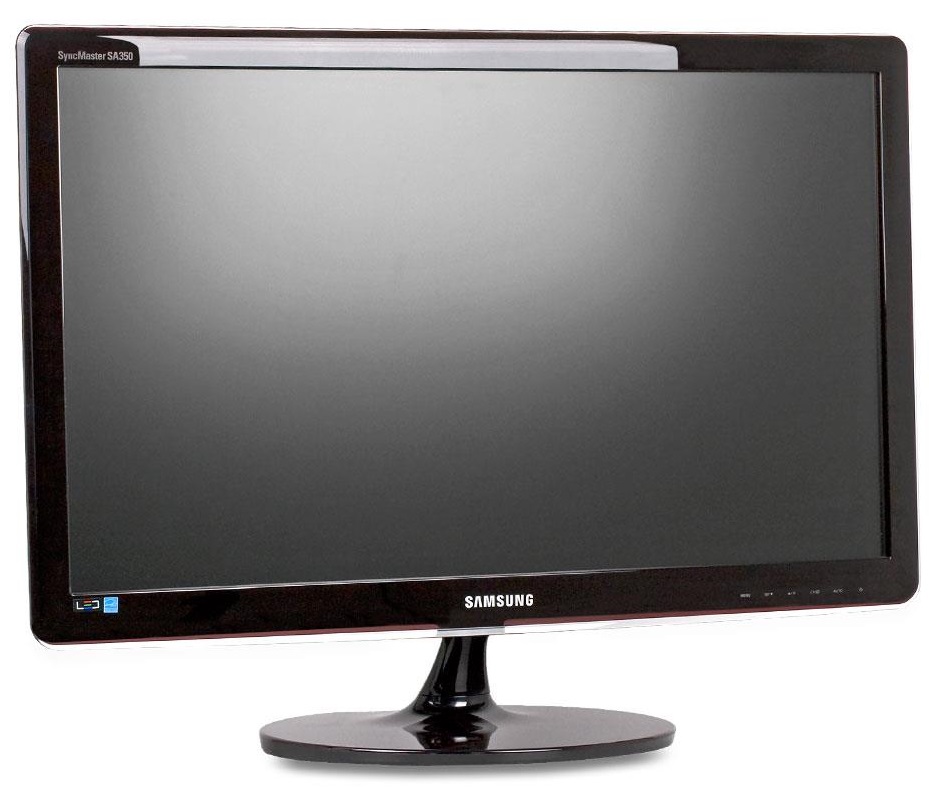

| Second Monitor | Samsung | S23A350H | 14V | 2.14A | 29.96 |
Total Wh = 29.96
- Monitor is connected to the passive 15V PoE port, voltage reduce to 14V
- Above mentioned is a non-standard configuration with a device which we are developing
Theoretical backup time for Power-Buddie DC UPS 75Wh = 150.2 minutes
This is calculated (UPS Wh (75) \ Total device Wh (29.96) * 60 minutes)
For the above mentioned scenario, the Power-Buddie DC UPS 75Wh (24000 mAh) provided backup power for 146 minutes.
In contrast with the other use cases the monitor consumed more or less the wattage provided by the manufacture and the Power-Buddie DC UPS 75Wh (24000 mAh) provided 5 minutes less than the theoretical backup time.
